Imagen 1 de 3

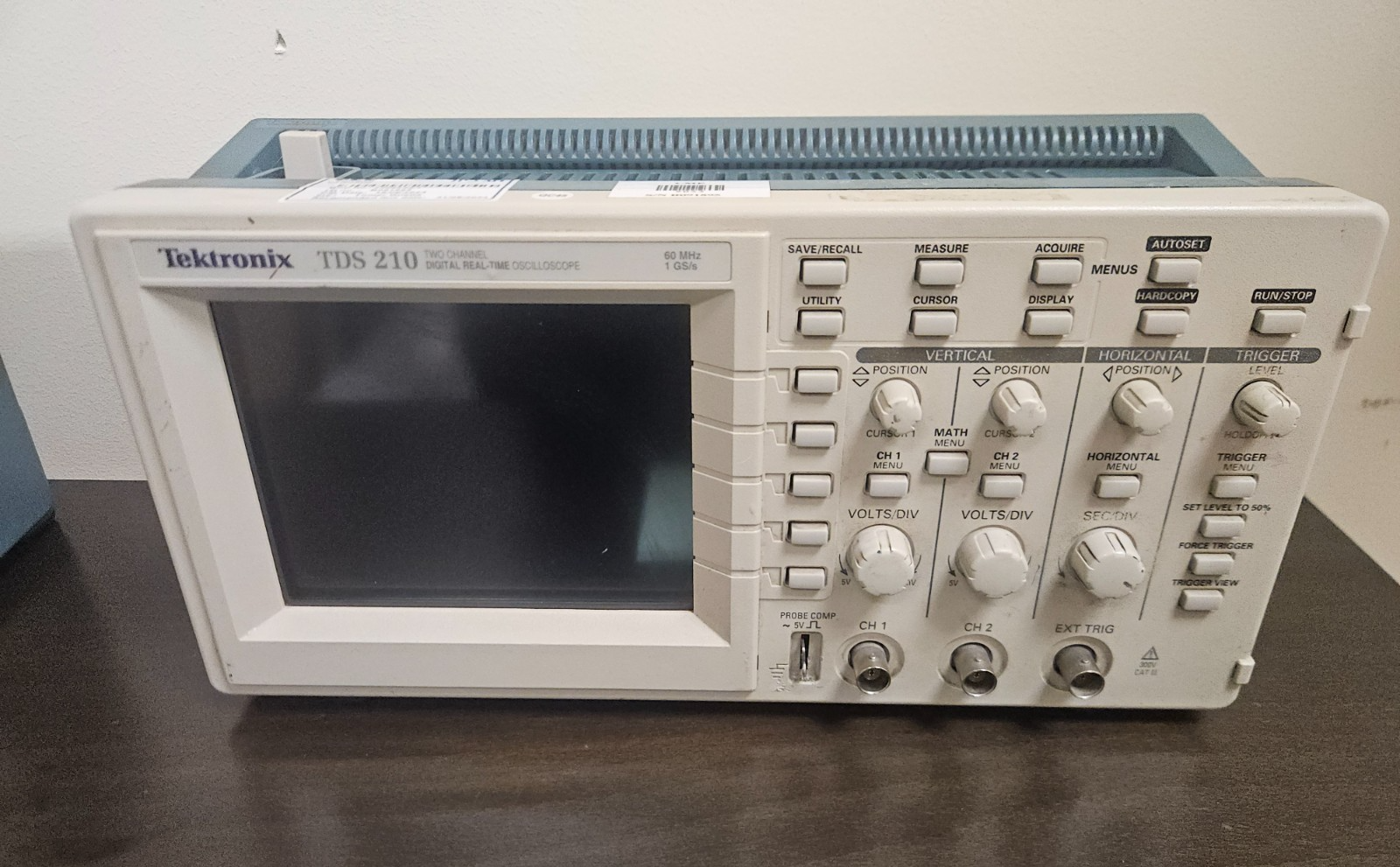

Tektronix TDS210 Digital Oscilloscope

Sé el primero enescribir una opinión.

GR18 Trading (10)
100% de votos positivos

Precio:

USD180,00

Aproximadamente165,59 EUR

+ USD45,00 de envío

Entrega prevista: vie. 31 may. - lun. 10 jun.

Devoluciones:

30 días para devoluciones. El comprador paga el envío de la devolución.

Estado:

Usado

Ver todos los detalles

Acerca de este artículo

Product Information

The Tektronix TDS210 digital oscilloscope provides automated real-time measurement across two channels. The two channel measurements allow you to view multiple data streams simultaneously. This Tektronix oscilloscope also provides you with a dual time base for making comparisons over a specific time period. These scopes operate at a bandwidth of 60 MHz and a sample rate of 1 GS per second. At this 60 MHz frequency, this TDS series model allows you to capture essential data from your industrial and scientific machinery. It captures rise and fall times, pulse width, and voltage of waves. Housed in a compact and lightweight benchtop case, the TDS210 is well suited for taking ground-referenced measurements. Each channel has a record length of 2,500 points. This allows you to get a clear and accurate view of the waveform distribution. The TDS also has a trigger function setup that includes edge, video, and external views. Switching between views on the TDS210 is as simple as pushing a button on the unit's front face.This piece of digital scope equipment has a vertical range of 2 mV to 5 V per division. This information provides you with critical information about changes in the electrical consumption or capacity of any device that it is monitoring. This Tektronix oscilloscope allows you to stop the waveform function during a collection period. Once the collection is stopped, you can save it for reference. The unit also allows for vertical and horizontal expansion and contraction of any collected wave. This Tektronix oscilloscope also performs mathematics on waveforms. You can choose to sample, average, or calculate the peak of any wave. It automatically collects essential data, including the period, frequency, cycle RMS, mean, and peak-to-peak distance of any wave. This information allows you to make time-sensitive adjustments to the devices the oscilloscopes are monitoring.The Tektronix digital oscilloscope also has zooming functionality and a dual time-based horizontal range of 5 nanoseconds to 5 seconds per division. Zooming in on the digital points allows you to track minute variations in your measurements. The information gleaned from this device can be saved in its internal memory storage. You can also create a printout of your data with the Centronics printer port. It even supports external connections with the included GPIB and RS-232 interface with Centronics port.Display modes are Dot and feature individual points with variable persistence. You can also set the TDS scope to the Vector display mode. In this type of signal operation, the points are arranged in a continuous wave. Its high 8-bit resolution of 256 levels over 10 vertical divisions allows you to observe wave characteristics in detail.This piece of equipment measures about 12 inches long by 6 inches tall by 4.5 inches deep and weighs about 2 pounds. It has a backlit display that measures about 4.5 inches wide by 3.5 inches tall. With an interface in English, German, Spanish, French, Chinese, and other languages, you can use it in nearly any location. This product accepts U.S. standard 120 volts of alternating current power with its three-pronged plug.

Product Identifiers

Brand
Tektronix
MPN
TDS210
Model
TDS210
eBay Product ID (ePID)
96937615

Additional Product Features

Time BASE Accuracy
±0.01%
Equivalent Time Sample Rate
1GSa/s
Sample Rate
1GSa/s
Rise Time
5.8ns
Vertical Sensitivity
2 Mv/Div to 5V/Div
Time BASE Range
5ns/Div to 5 S/Div
Channels
2
Memory Depth
2500 Pt/Sec
Type
Digital
Input Impedance
1 Mâ„¦
Vertical Resolution
8 Bits
Interface
DB9 RS-232
