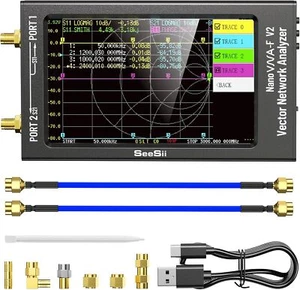

Analizador de red vectorial NanoVNA-F V2 50 KHz-3 GHz HF VHF UHF VNA Analizador de antena-
129,99 EUR
o Mejor oferta
Estado:
Nuevo
Un artículo nuevo, sin usar, sin abrir, sin desperfectos y en el paquete original (en caso de venir empaquetado). El empaquetado debe ser el mismo que se encontraría en una tienda, a menos que el artículo haya sido empaquetado por el fabricante con material no destinado a su venta en tienda (por ejemplo una bolsa o caja sin etiquetas). Consulta el anuncio del vendedor si deseas más información.
20 disponibles52 vendidos
Oops! Looks like we're having trouble connecting to our server.
Refresh your browser window to try again.
Envío:
No se realizan envíos a Estados Unidos.
Ubicado en: Bremen, Alemania
Entrega:
Variable
Devoluciones:
30 días para devoluciones. El vendedor paga el envío de la devolución.
Pagos:
Compra con confianza
El vendedor asume toda la responsabilidad de este anuncio.
N.º de artículo de eBay:296572620170
Última actualización el 29 jun 2025 14:25:39 H.EspVer todas las actualizacionesVer todas las actualizaciones
Características del artículo
- Estado
- Display
- 4.3inch, Touch Screen, Resolution 800*480
- Material
- Upgraded Aluminium Housing
- Power Source
- 5000mA-h 3.7V battery, USB Charge
- Measurement Range
- 50k-3GHz
- Language
- Support Chinese and English menu switching.
- Package Dimensions
- 9.8 x 6.1 x 1.93 inches; 1.08 Pounds
- Marke
- SEESII
- Herstellernummer
- 6933834695682
- Steckertyp
- USB
- Anzeigetyp
- LCD - Touch Screen
- Batterietyp
- 5000mAh battery
- Geeignet für
- Measuring S-Parameter, Voltage SWR, Phase, delay, Smith Chart
- Produktart
- Netzwerk Prüfgerät
- Stromversorgung
- Batterie
- Model
- NanoVNA-F V2
- standby time
- up to 7 hours.
- Function
- can be used as a power pack to charge your mobile phone
- RF output power
- -9dBm (error within 1GHz: ±1dB)
- S21 dynamic range:
- 70dB (1.5GHz), 60dB (3GHz)
- S11 dynamic range:
- 50dB (1.5GHz), 40dB (3GHz)
- 2-port return loss:
- 20dB typ (1.5GHz), 13dB min (3GHz)
- Scan time:
- about 1.9s/1 time (50kHz ~ 3000MHz full frequency band)
- EAN
- 6933834695682
- UPC
- 6933834695682
