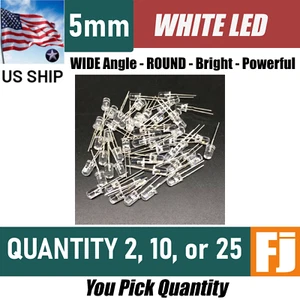

Diodo LED difuso gran angular redondo blanco LED brillante | Cantidad 2,10,25 | Envío a EE. UU.-
USD4,64
Aproximadamente3,99 EUR
Costaba USD4,88 (5% de descuento)
Estado:
Nuevo
Un artículo nuevo, sin usar, sin abrir, sin desperfectos y en el paquete original (en caso de venir empaquetado). El empaquetado debe ser el mismo que se encontraría en una tienda, a menos que el artículo haya sido empaquetado por el fabricante con material no destinado a su venta en tienda (por ejemplo una bolsa o caja sin etiquetas). Consulta el anuncio del vendedor si deseas más información.
La oferta finaliza en: 4 d 20 h
Selecciona Qty
21 disponibles12 vendidos
- ¡Cómpralo ya!Diodo LED difuso gran angular redondo blanco LED brillante | Cantidad 2,10,25 | Envío a EE. UU.
Oops! Looks like we're having trouble connecting to our server.
Refresh your browser window to try again.
Envío:
Gratis Economy Shipping.
Ubicado en: Chester, New Hampshire, Estados Unidos
Entrega:
Entrega prevista entre el jue. 14 ago. y el lun. 18 ago. a 94104
Devoluciones:
30 días para devoluciones. El comprador paga el envío de la devolución..
Pagos:
Compra con confianza
El vendedor asume toda la responsabilidad de este anuncio.
N.º de artículo de eBay:235527333001
Última actualización el 17 may 2025 05:24:46 H.EspVer todas las actualizacionesVer todas las actualizaciones
Características del artículo
- Estado
- Brand
- Generic
- Name
- White LED 5mm Round Wide Angle Diffused LED Diode Bright
- Lens Color
- Diffused
- Emission Color
- White
- Forward Voltage
- 3.0V-3.4V
- Forward Current
- 20mA
- Wavelength
- White
- Viewing Angle
- 120 degrees
- LED Diameter
- 5mm
- LED Type
- Through Hole
- Storage Temperature Range
- -40°C to 100°C
- Lead Length
- 24mm
- Lead Spacing
- 2.54mm
- Max Reverse Voltage
- 5V
- Power Dissipation
- 120mW
- Lens Type
- Round
- Package Type
- Radial
- Polarity
- Anode/cathode leads
- ESD Withstand Voltage
- 2000V (Human Body Model)

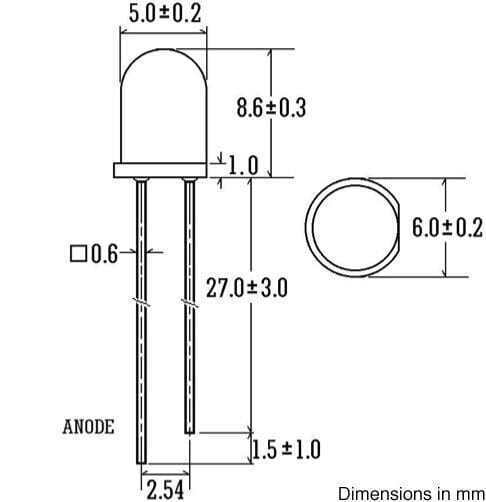

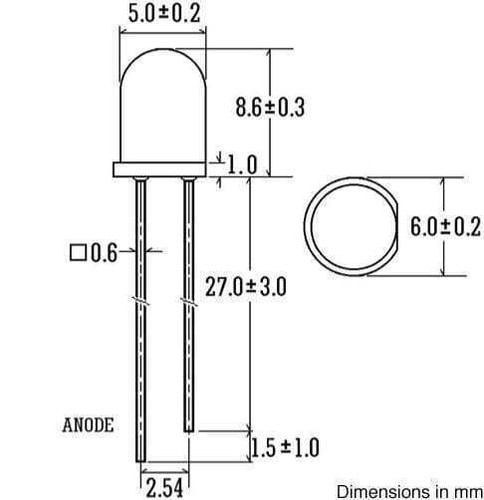

- Dimensions
- 5mm (Dia) x 7mm (Height)
- Material
- GaN (Gallium Nitride) on Sapphire Substrate
- Soldering Temperature
- 260°C for 5 seconds
- Current Rating
- 0.02A
- RoHS Compliant
- Yes
- Shipping
- Economy (USPS First Class Envelope unless upgraded)
- Upgrade Shipping
- Purchase $25 or more get free USPS G/A shipping Upgrade
- Country of Manufacture
- China
