GPS/GSM/GPRS Vehicle&Personal tracker--GPS104/TK104
The best type from Coban Electronics co.
built-in 6000mA battery,standby time 4 months in sleep mode,
12 months in deep sleep mode
waterproof,listen in,powerful magnet
movement,geo-fence,shock sensor alarm,remote monitor
Waterproof shell,powerful magnet absorb to vehicles firmly, 6000mhA battery sleep mode 4 months standby,12 months in deep sleep mode
Movement ,geo-fence alert ,shock sensor alarm ,view map on the cell phone screen,Get address name in SMS from cell phone
PC installation GPRS tracking&monitoring software ,track 225pcs trackers at the same time

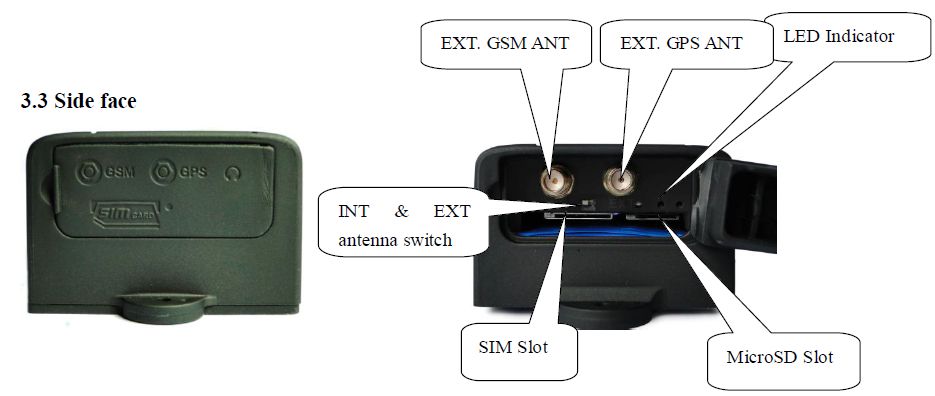

Built-in and external GPS,GSM antenna suitable for vehicles and personal use .
Real-time tracking on www.gpstrackerxy.com,demo account,demo,password,8888

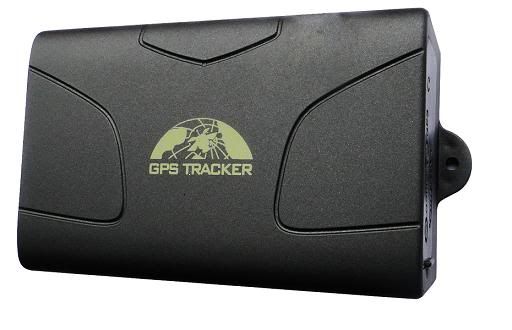

Outlook pictures :
Choose our GPS104 reasons:
1,Suitable for vehicles and personal use ,beacause
When you want it to be install on the car :

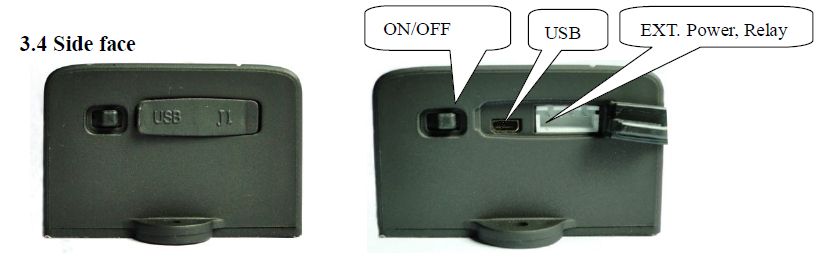

It support external GPS,GSM antenna , function cable for IO ports make you to detect car door ,windows , cut off car power remotely by SMS or from website .
Connect car power make it keep on working without power off .
When you want it to be hided at any place :

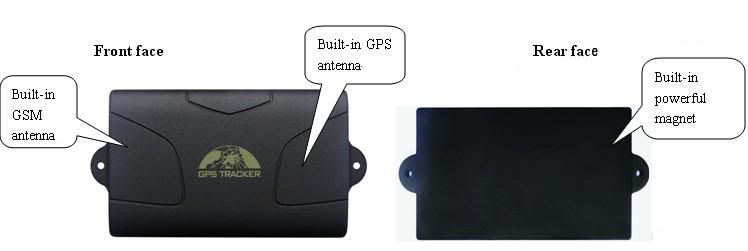

It support powerful magnet ,easy to absorb to any place
Built-in GPS,GSM antenna ,no need install
Waterproof ,6000mHA long time battery ,4months in sleep mode,12months in deep sleep mode for standby time.
2, Include all best functions which you can get from other trackers as follows
1. Single Locating
Tracking location, when no GPS signal, the SMS includes the last valid latitude & longitude as well as the LAC code of current position, the LAC
code can be input in the column of “manual track” menu of web platform.
2. Auto track continuously
a. Track with limited times upon time interval
b. Track with unlimited times upon time interval
c. Smart track upon time and distance interval
3. Automatic update positions of vehicle turns
The tracker will update the positions automatically to web server once the vehicle changing driving direction over pre set angle value to form a
smooth trajectory consistent with the actual road, this function is only effective in GPRS mode.
4. GPS drift suppression
The GPS data stop updating if vehicle is not moving and latitude and longitude always keep same, and GPS data updates automatically when
vehicle is moving.
5. Get absolute street address
Note: You must set up the APN of your local GSM network for the SIM card in tracker first before using this function.
6. Location based service (LBS)
When the tracker device doesn’t received valid GPS signals, tracker will locate by LBS, the messages includes the GPS coordinates of the last
position in SMS mode, but the LAC in message is the current new position, the location can be seen by input the LAC code in the menu “Manual
Track” of web platform ;www.gpstrackerxy.com, you can also send command “address+password” to tracker to get the newest absolute address
and newest GPS coordinates as well; tracker will automatically switch to track by location based service in GPRS mode, and actualized on the
map of web server with LBS mark. And there may be some inaccuracy with actual location by LBS tracking; the bias depends on GSM reception.
Note: This feature can be used normally in most areas according to the signal of GSM network. It may not be available in some areas.
7. Check the Vehicle State.
8. Check IMEI
9. Terminal (local) Time Setting
10. Monitor (Voice Surveillance)
The default mode is “track” (Track mode). Send SMS “monitor+password” to the unit, and it will reply “monitor ok!” and switch to “monitor” mode.
11. Data Logging
Logging Volume: Built-in flash 1MB (store about 16,000 positions); expanded volume depends on the SD card inserted.
12. Data Load
13. Forward the third parties’ message
14. Cut off the Oil and Power System
a. Execute immediately Mode
Send command “quickstop+password” to tracker, it will reply “quickstop OK”. Then tracker will stop the car immediately after
“stop” command. Send command “stop+password” to tracker, tracker will execute it and reply “Stop engine Succeed”. And it will
remain immobile state until next command to resume.
b.Execute depends on speed(Default mode)
Send command “noquickstop+password” to tracker, It will reply “noquickstop OK”, Then the tracker won’t stop the car
immediately after “stop” command during the speed above 20KM/H, instead, it will reply “it will be executed after speed less than
20KM/H”, and stop the car when the speed is less than 20KM/H.
15. Resume the Oil and Power System
16. Sleep Mode
a. Sleep by time
Send "sleep+password+space+time", tracker will reply "sleep time ok" if none of the alarms listed under chapter IV has been set and no
operations, tracker will fall asleep in 5 minutes, LED will be off, calling or SMS can awake the tracker. If these alarms have been set, tracker
will enter sleep by detecting shock sensor. And tracker will sleep by time as default.
b. Sleep by shock sensor
Send "sleep+password+space+shock", tracker will reply "sleep shock ok", it will enter sleep mode after detect no shock, and LED will be off.
c. Deep Sleep by shock sensor
Send "sleep+password+space+deep shock", tracker will reply "sleep deepshock ok", it will enter deep sleep mode after detect no shock, GPS GSM module will shut off and LED will be off,only shock will make it awake
d. Start to work on specific time
Send "schedule+password+space+interval days +space+time+comma+time", tracker will reply "schedule ok", it will enter sleep mode, GPS GSM module will shut off and LED will be off,It will awake as schedule time and send,work notify
e. No sleep mode
send this command, tracker will no go into sleep mode, GPS, GSM module will work all the time.
17. trackers hardware resetting
19. Multi-area management
20. Movement alert
21. Overspeed alert
22.Accident alarm (Optional)---If you need this function, you add extra $6 for it and contact us via ebay message!
When tracker detects accident occurred (severe impact), it will send " Accident! + latitude & longitude " to all authorized phone numbers.
23. Shock Sensor Alarm
24. SOS Alarm
25. Low battery alert
26. Power off alarm
27. GPS blind Spot alert
28. TCP/UDP switch

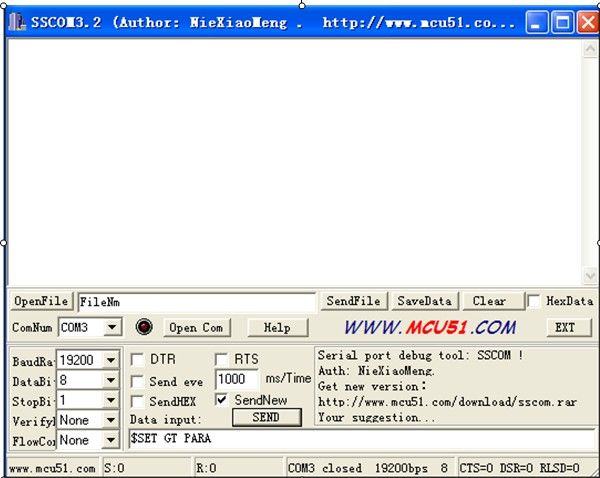

29. Configure parameters by USB
Connect tracker to computer with the USB cable (optional,buy from our ebay store http://stores.ebay.com/sweetgirlstore2010), and open file user_config.ini with notepad and operate it according to the examples.
Note: Correct password is need every time you configure the tracker.
30. Less GPRS traffic
Tracker will change to less GPRS traffic mode & sleep by shock sensor mode after parking 5 minutes, GPRS disconnect and connect again
when alarm being triggered or start driving.
31. Setup monitor center number
If monitor center number doesn’t setup, auto track messages will be sent to the cell phone which send this command.
3. Web platform and PC installation tracking software:

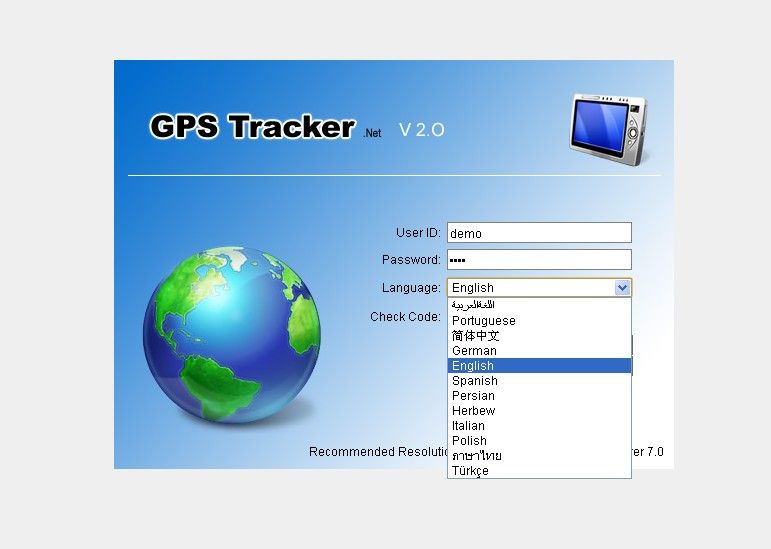

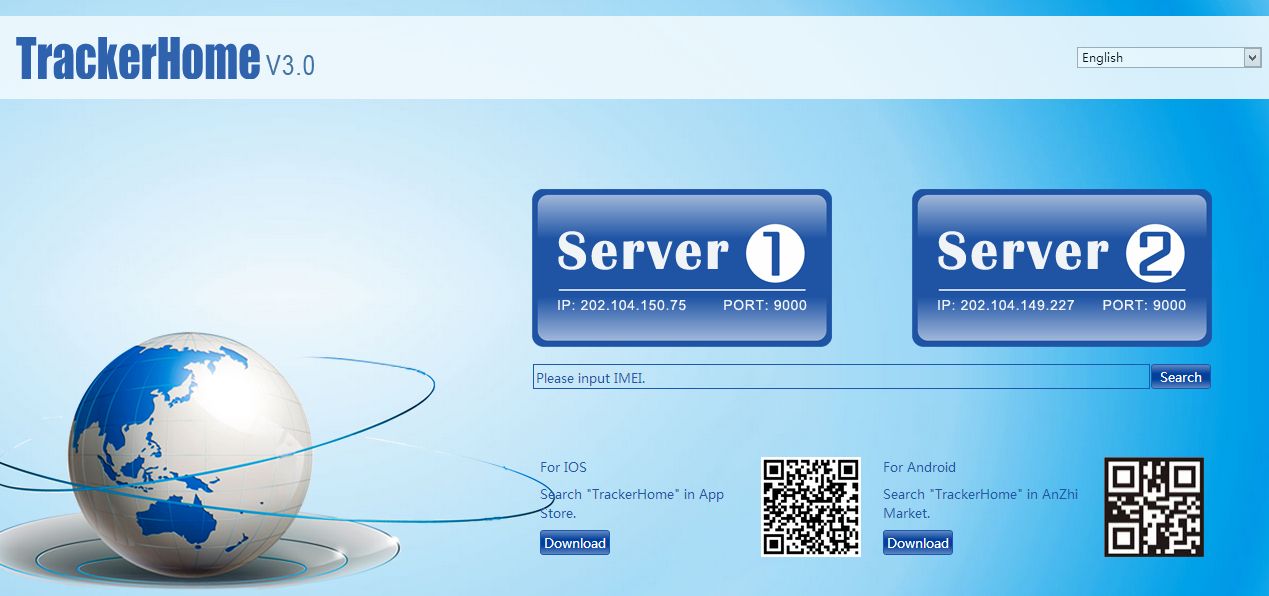

a. Web based platform www.gpstrackerxy.com Configuration IP: 22.214.171.124 Port: 9000. Please check "software platform
user manual" included in the CD for detailed operation information.
b. PC based installation tracking software user manual included in the CD in package, it is free for using!
Web tracking software for tracking all your vehicles Live and Real-time, can send commands, cut off power, set Geo-
fence, movement area from this web platform, which support over 17 languages NOW , 15days free

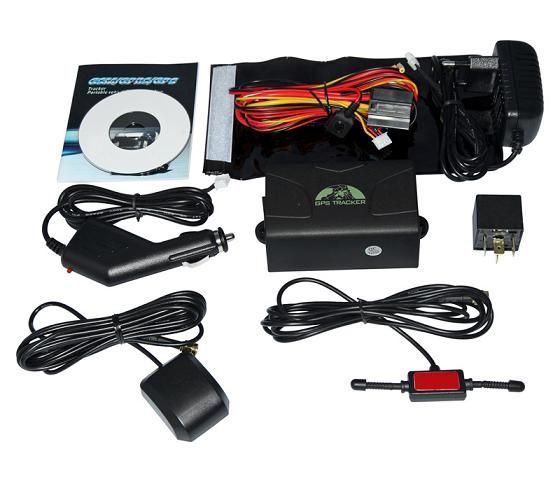

1. Genuine retail Box
2. GPS TRACKER GPS104/TK104
3. Lighter car adapter
4. GPS Antenna 3 meters
5. GSM Antenna 2 meters
6. Harness 4PIN with relay
7. Waterproof bag
8. paper manual
Optional Accessories as follows ,just click the pictures to get buy it now link on ebay, tks!
International Buyers – Please Note:
- Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.
- Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.
- This GPS trackers need to use a Sim card for 850/900/1800/1900MHZ, not support 3G,4G sim card
- The package no include sim card,customers need to get it from your own country by yourself.
